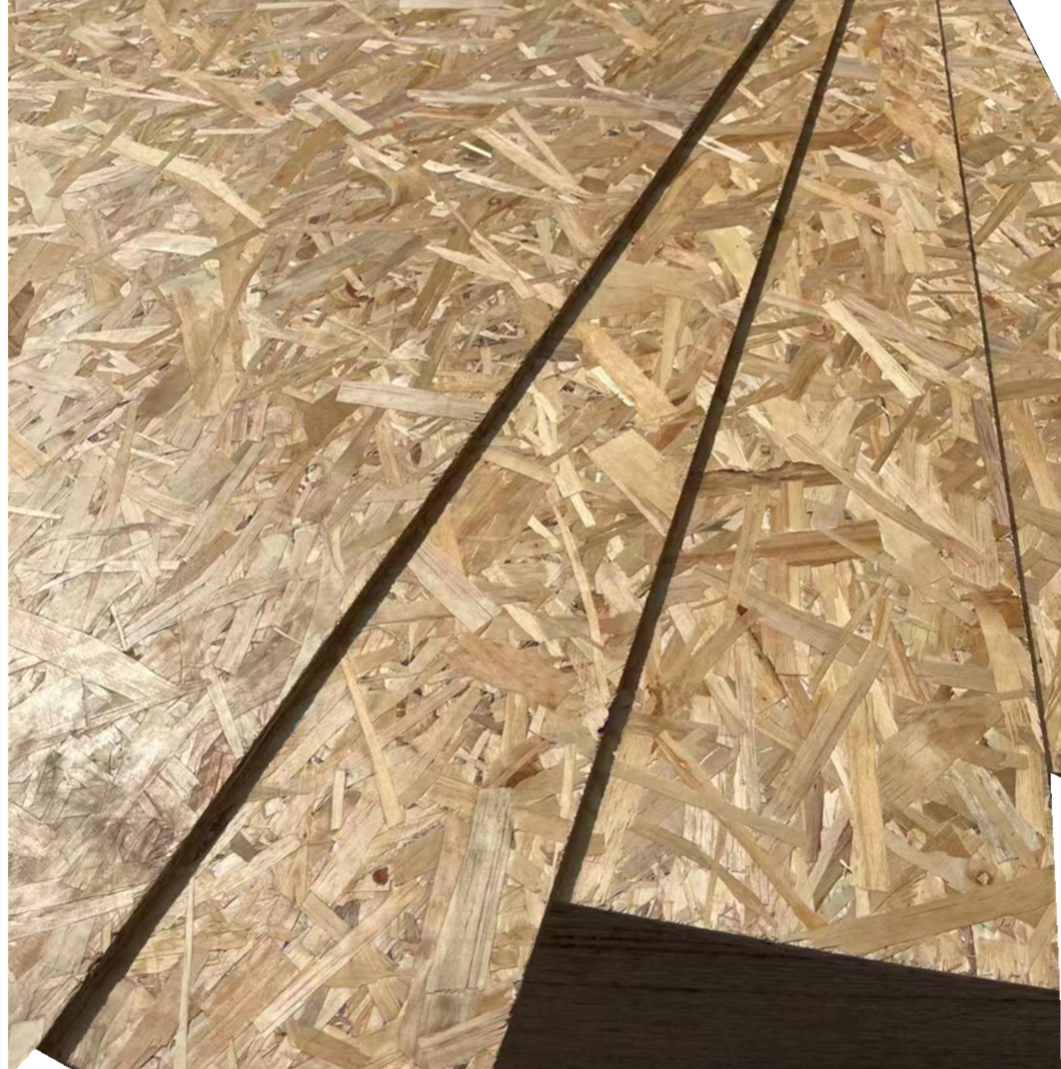

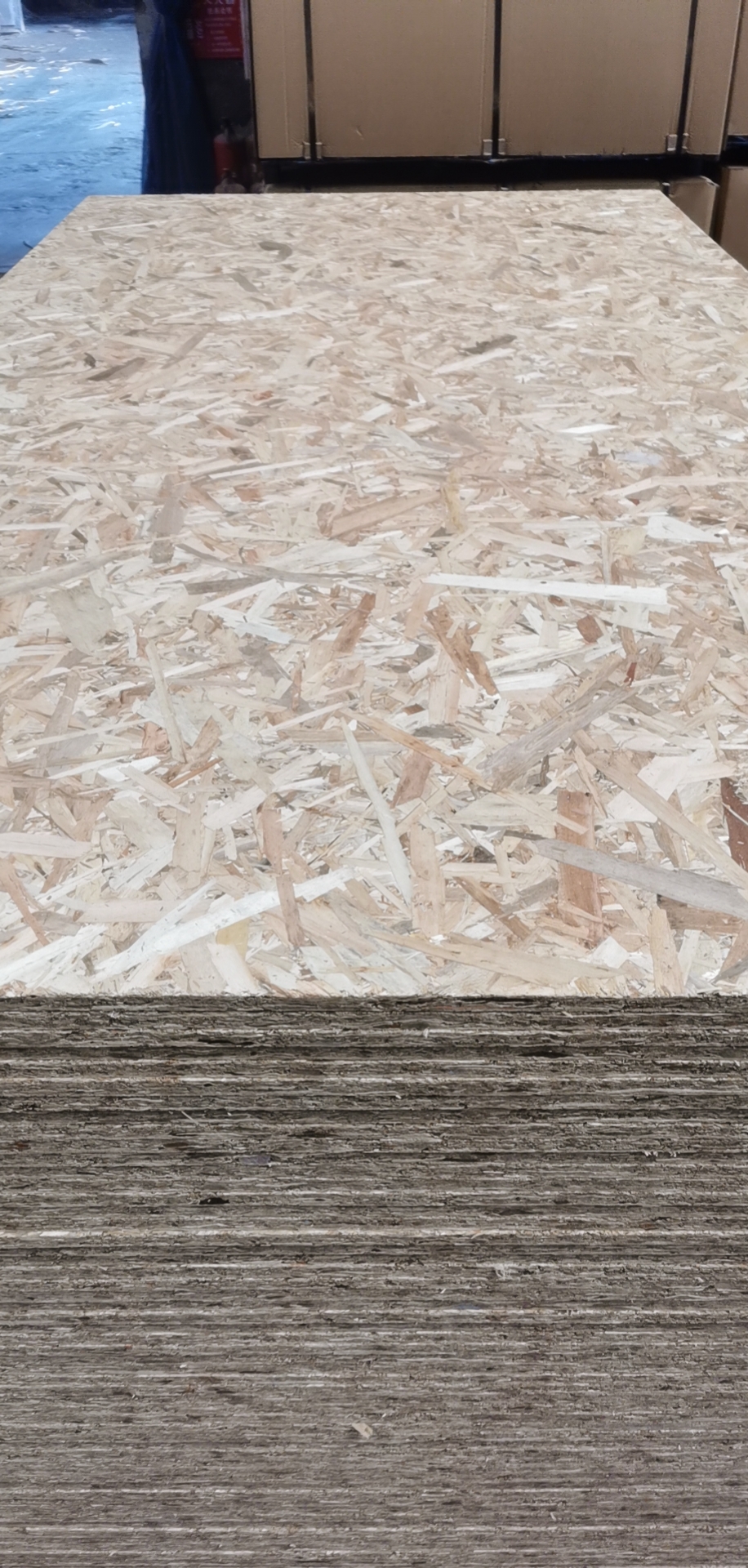

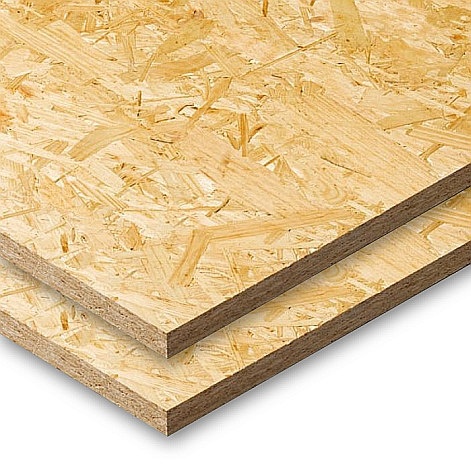

OSB (Oriented Strand Board)
Oriented Strand Board(OSB) is a widely used, versatile structural wood panel. Manufactured from waterproof heat-cured adhesives and rectangularly shaped wood strands that are arranged in cross-oriented layers, OSB is an engineered wood panel that shares many of the strength and performance characteristics of plywood. OSB's combination of wood and adhesives creates a strong, dimensionally stable panel that resists deflection, delamination, and warping.
OSB/2- Load-bearing boards for use in dry conditions
OSB/3- Load-bearing boards for use in humid conditions
OSB/4- Heavy-duty load-bearing boards for use in humid conditions
Panel Performance Categories
5/16, 3/8, 15/32, 1/2, 19/32, 5/8, 23/32, 3/4, 7/8, 1, 1-1/8.
Panel Sizes
4' x 8', 4' x 9', 4' x 10'; manufactured in 8' X 4' or larger panels which can be custom-cut.
Product Description:
| Commodity | OSB (Oriented Strand Board) |
| Size | 1220*2440/1250*2500MM |
| Thickness | 9 12 15 18mm |
| Tolerance | ±0.5mm in the thickness,±0.2mm in the width and length |
| Glue | MR, melamine,WBP,PMDI |
| Materials | poplar, pine,Combine materials |
| Production capacity | 200000 CBM/year |
| Density | 630-650kgs/cbm |
| Density tolerance | ±10% |
| Formaldehyde emission (mg/100g) | ≤8% |
| Moisture content | ≤10% |
| Elasticity modulus(parallel) | Average value (Mpa):≥3500 |
| Minimum value (Mpa):≥2800 | |
| Elasticity modulus (vertical) | Average value (Mpa):≥1400 |
| Minimum value (Mpa):≥1120 | |
| Internal bond strength | Average value (Mpa):≥0.32 |
| Minimum value (Mpa):≥0.256 |
